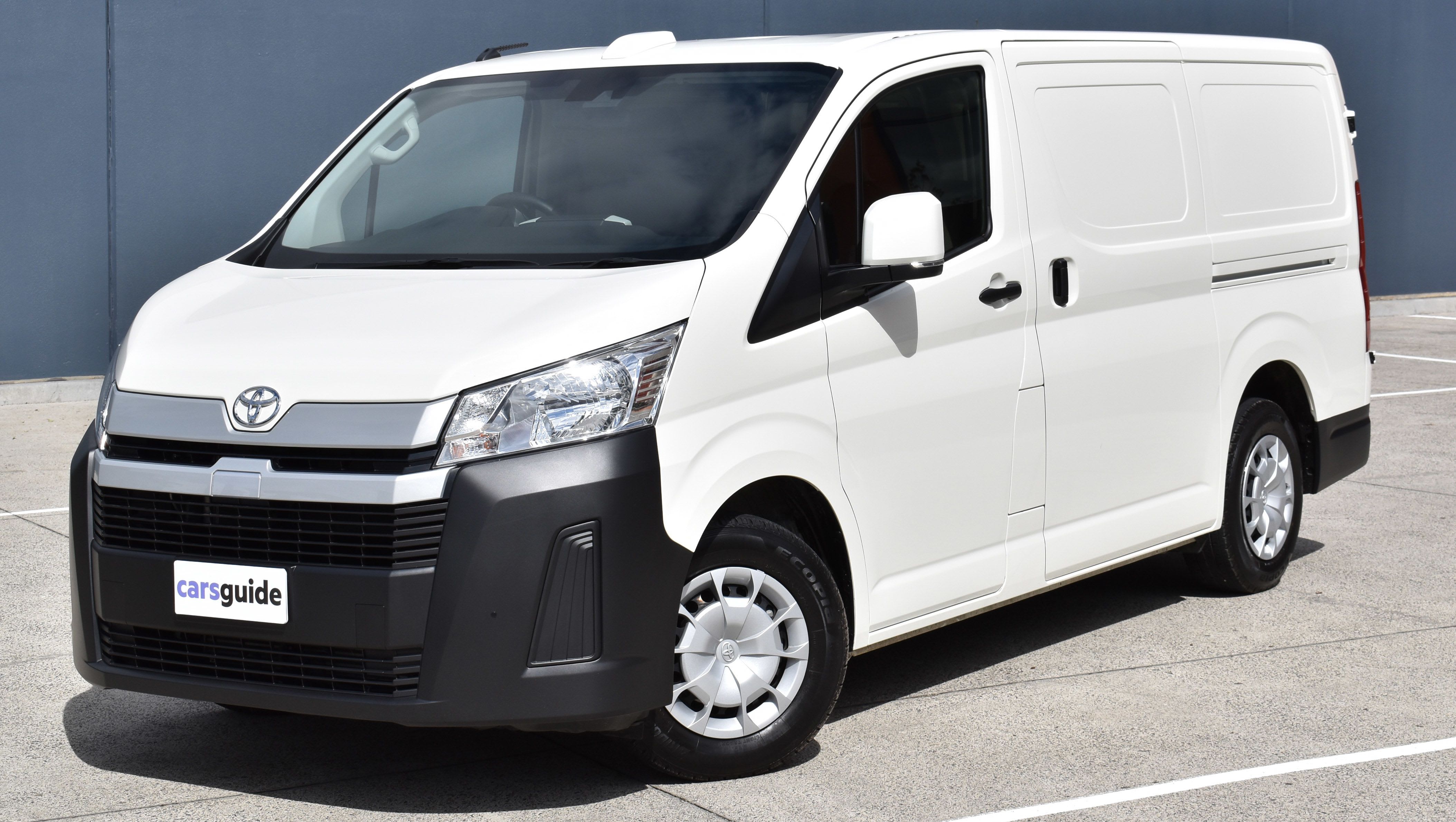

Toyota HiAce 2025 review: LWB - GVM test

Our test vehicle is equipped with Toyota’s ubiquitous 2.8-litre four-cylinder turbo-diesel shared by all models in the HiAce range. However, ours is equipped with the optional six-speed automatic and rear barn doors which raises the list price to $51,636.

Even so, that’s still within the ballpark of its closest rivals including the LDV G10+ Barn Door ($40,063), Hyundai Staria Load Barn Door ($46,740), and Ford’s new Transit Trend LWB Barn Door ($57,590).

2025 Toyota HiAce LWB

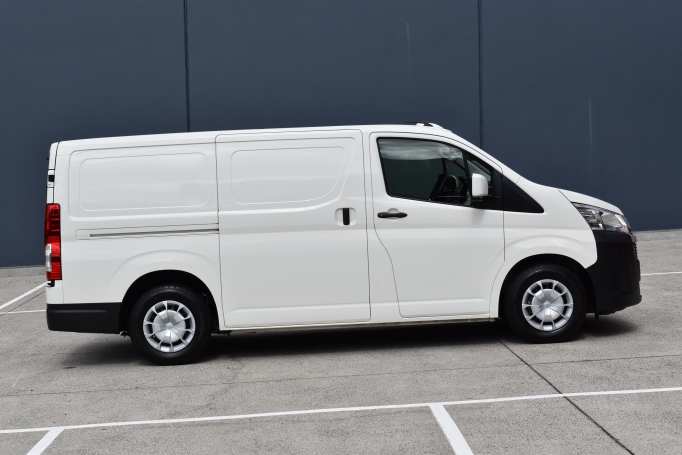

Our example is also equipped with a solid-walled left-side sliding door (in preference to the standard offering with window), which HiAce buyers can specify at no extra cost when ordering.

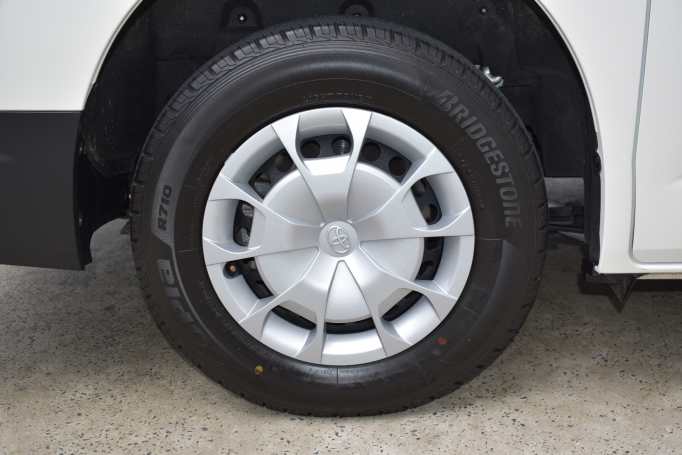

The two-seater HiAce comes standard with 'French Vanilla' paint and 16-inch steel wheels with replaceable plastic covers, 215/70R16 tyres and a full-size spare, but there’s no protective load-floor liner for the cargo bay (a Toyota genuine accessory is available).

2025 Toyota HiAce LWB

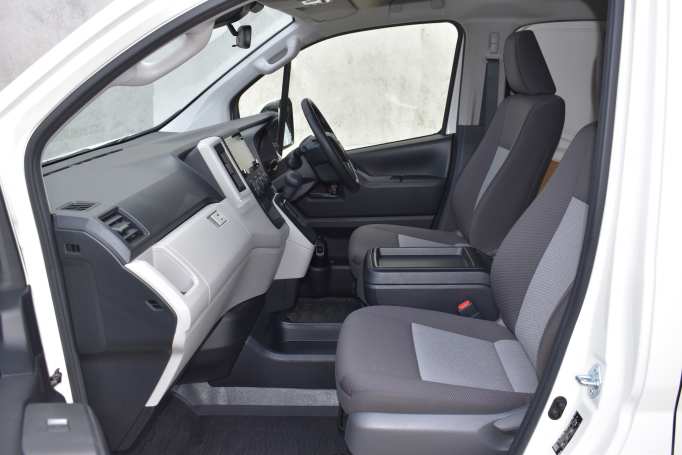

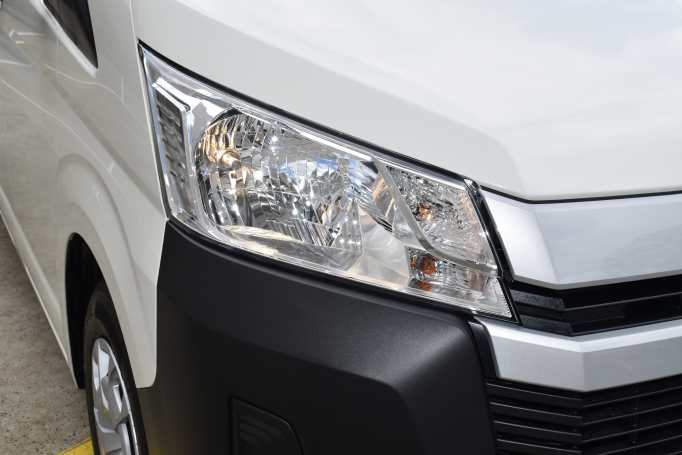

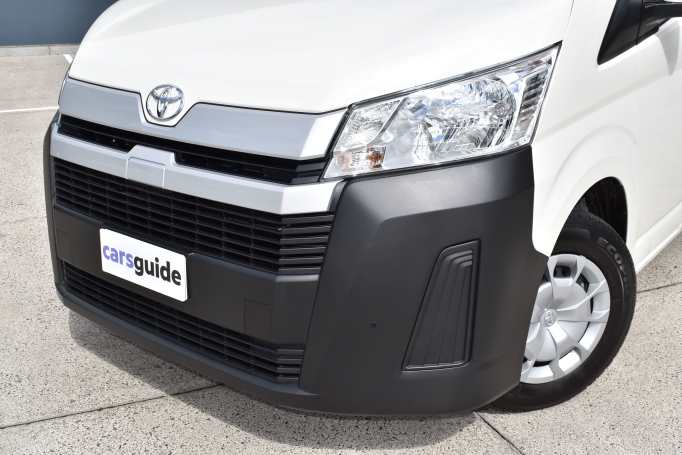

There’s also halogen headlights and DRLs (no fancy LEDs here, folks) and the neat two-tone cabin has a tilt/reach adjustable leather-accented steering wheel, power-adjustable lumbar support on the driver’s seat, one USB port and two 12-volt cabin sockets, plus a large centre console that offers numerous storage options.

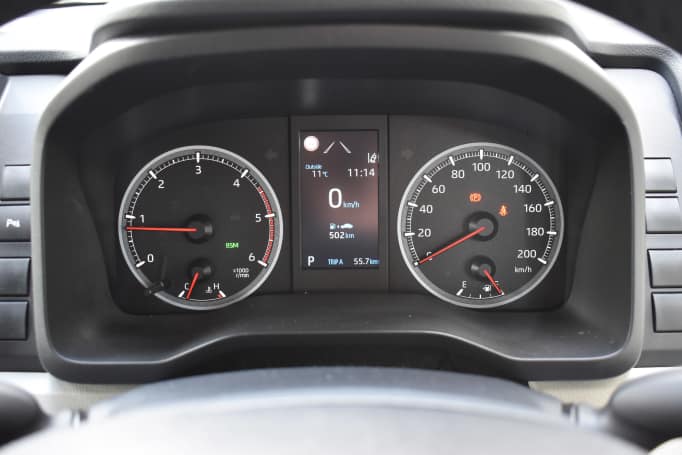

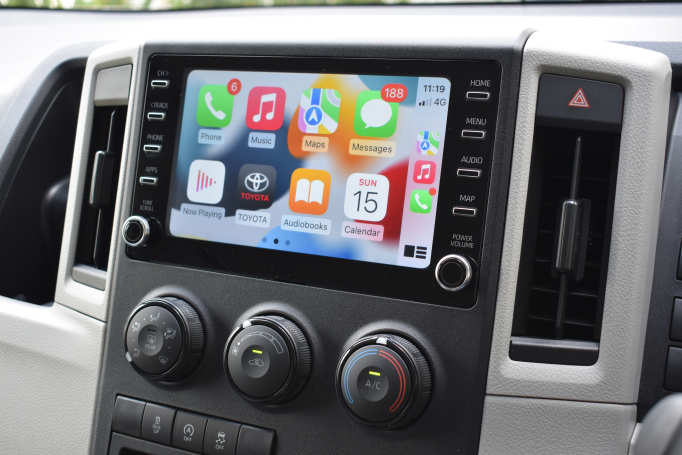

The driver also gets a 4.2-inch driver’s info display and there’s an 8.0-inch touchscreen (plus steering wheel switches) to control the two-speaker infotainment system, which offers multiple connectivity including Apple CarPlay/Android Auto, Bluetooth, digital radio and more.

Our barn-door-equipped test vehicle has a hefty 2245kg kerb weight and 3300kg GVM, which results in a genuine one-tonne-plus payload rating of 1055kg. Up to 120kg of that weight can be carried on Toyota’s triple roof-rack set.

It’s also rated to tow up to 1500kg of braked trailer, which is less than some rivals but in reality should adequately cover most towing requirements of van operators.

2025 Toyota HiAce LWB

And with its 4800kg GCM rating (or how much weight it can legally carry and tow at the same time), that means it can carry its maximum payload while towing its maximum trailer weight. So, that’s a combined total of more than 2.5 tonnes of cargo-carrying ability, which would comfortably meet or exceed most job requirements.

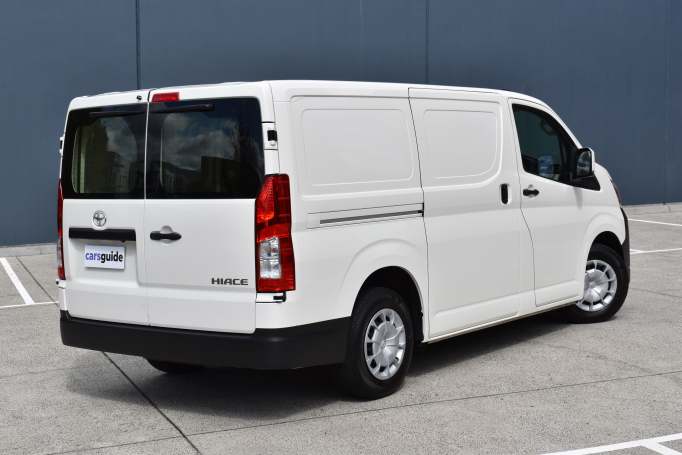

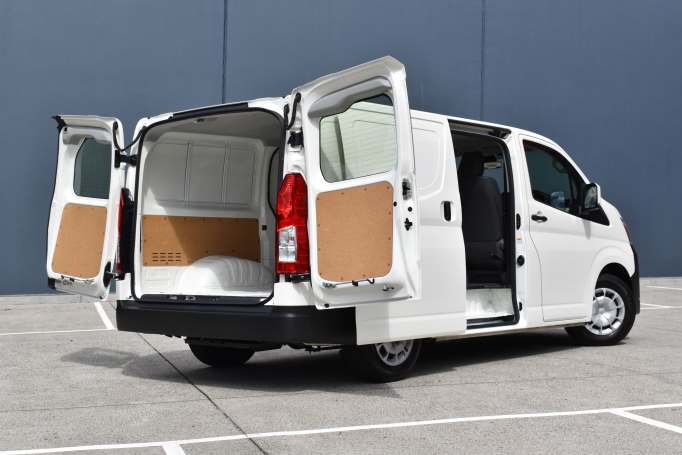

The generously-sized cargo bay, which offers an impressive 6.2 cubic metres of load volume, is accessed from either side through sliding doors with large 1010mm openings, or from the rear through the optional barn doors which can be opened to 180 degrees (with special lower hinges to hold them there) allowing easy access for forklifts.

2025 Toyota HiAce LWB

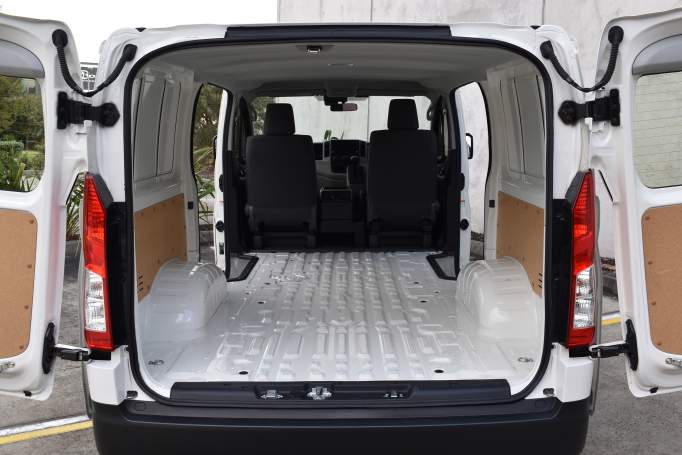

The cargo bay is 2530mm long, 1760mm wide and 1340mm high and with 1268mm between the rear wheel housings it can swallow up to two standard Aussie pallets or up to three Euro pallets, held in place by a choice of six load-anchorage points.

There’s plenty of internal lighting, the walls and doors are lined to mid-height and the roof features a full-length internal lining, which is unusual for vans and we suspect contributes to suppression of tyre noise emanating from the rear wheel housings.

2025 Toyota HiAce LWB

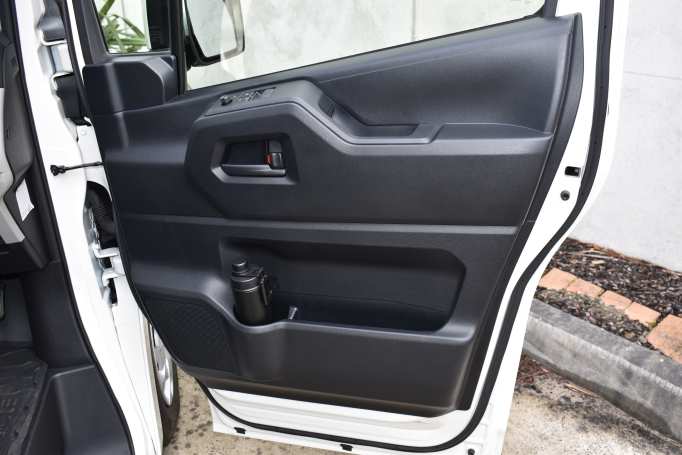

Cabin storage includes a large bottle holder and bin in the base of each front door, small-bottle/cupholders on either side of the dash and in the centre, plus a single glove box. The well-designed centre console offers another two bottle holders plus large internal storage, which is capped by a hinged lid that multi-tasks as a shallow storage tray and handy work desk.

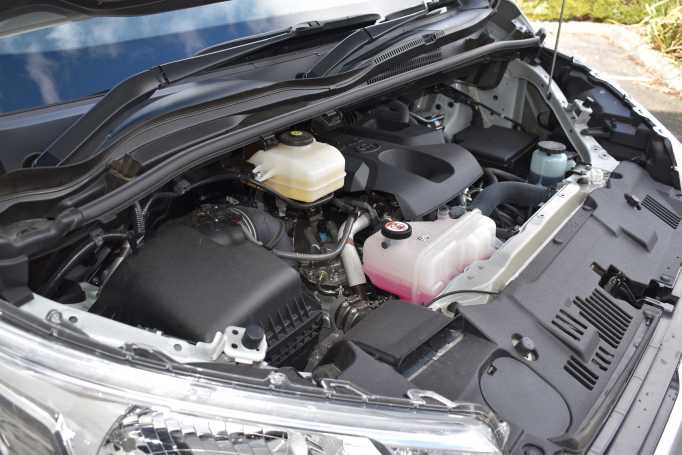

Toyota’s well-proven 1GD-FTV 2.8 litre four-cylinder turbo-diesel, which also powers Toyota’s HiLux, Fortuna and Prado model lines, produces 130kW at 3400rpm and (in auto models like ours) 450Nm of torque between 1600-2400rpm. Its Euro 5 emissions compliance doesn’t require AdBlue, which minimises maintenance and running costs.

The refined and smooth-shifting six-speed torque converter automatic offers the choice of sequential manual shifting if required. Fuel efficiency is also optimised with full torque converter lock-up on fourth, fifth and sixth gears, along with overdrive on fifth and sixth being ideal for highway driving. The inherent traction advantage of rear-wheel drive is enhanced by an electronically controlled automatic limited-slip diff.

2025 Toyota HiAce LWB

Toyota claims combined average consumption of 7.9L/100km for our test vehicle, but the dash readout was showing 11.0L/100km when we stopped to refuel after 270km of testing.

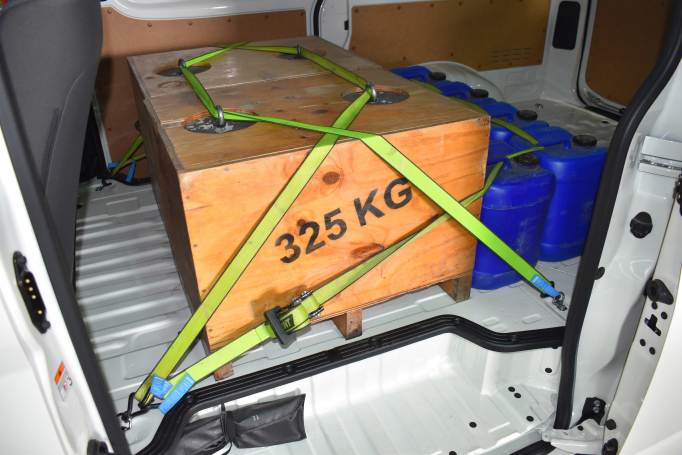

This was conducted with the engine’s auto start/stop function switched off and comprised a mix of city, suburban and highway driving, of which about one third was hauling a near-maximum payload.

Our own figure, calculated from actual fuel bowser and tripmeter readings, was higher again at 11.8, which still isn’t bad for a vehicle with a kerb weight exceeding 2.2 tonnes driven mostly in busy urban traffic and hauling almost one tonne during our test. So, based on our ‘real-world’ consumption figures, you could expect a driving range of around 600km from its 70-litre tank.

The HiAce has a five-star ANCAP rating awarded in 2019 which will expire in December 2025. It comes with seven airbags plus benchmark active safety features including AEB with pedestrian and daytime cyclist detection, lane departure alert with braking assist, speed sign recognition, blind-spot monitoring, rear cross-traffic alert, front and rear parking sensors, reversing camera and more.
