GWM Cannon 2025 review: Ultra - GVM test

Our test vehicle is the Ultra model grade, which sits above the entry-level Lux and below the Vanta and top-shelf XSR in the four-model Cannon range.

Like its siblings, the Ultra comes standard with a bigger 2.4-litre four-cylinder turbo-diesel engine sourced from its larger Alpha stablemate and new nine-speed automatic for $41,990 plus on-road costs ($43,490 drive-away).

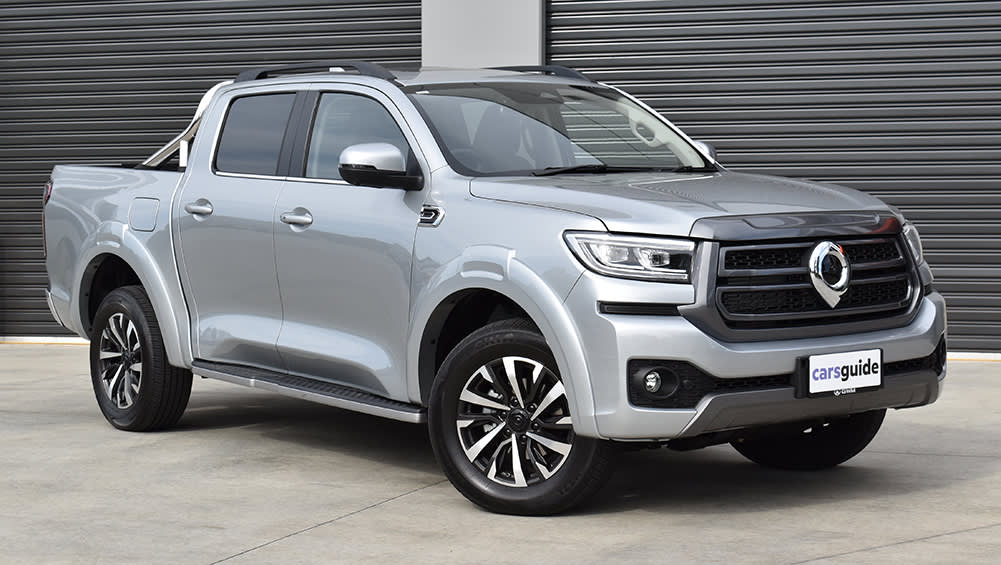

2025 GWM Cannon Ultra

Even with its optional 'Pittsburgh Silver' premium paint, which adds $595, that pricing represents compelling value given you need at least $50K just to get into a relatively spartan base-model Ford Ranger XL or Toyota HiLux Workmate 4x4 dual cab ute equivalent.

The Ultra has heaps of standard equipment, given that the entry-level Lux on which it’s based includes 18-inch two-tone chrome alloy wheels with 265/60R18 tyres and a full-size steel spare, chrome sports bar, LED lighting including DRLs, side-steps, roof rails, spray-in tub-liner, rear parking sensors, reversing camera, tyre pressure monitoring, driver’s 7.0-inch digital instrument cluster and six-speaker audio with a 12.3-inch multimedia touchscreen offering digital radio, Apple CarPlay/Android Auto connectivity and more.

2025 GWM Cannon Ultra

To this list the Ultra adds an electric sunroof, tailgate step and rear privacy glass, plus leather-accented seats with power-adjustable front buckets equipped with heating and cooling.

The steering wheel is also heated plus there’s a USB port for a dashcam, ambient lighting, auto-dimming rear view mirror, 360-degree camera view and front parking sensors.

With its 2230kg kerb weight and 3225kg GVM, the Cannon Ultra has a 995kg payload rating (that’s close enough to a ‘one-tonner’ by our measure) and the latest upgrades include an increase in braked tow rating from the previous 3000kg to the class-benchmark 3500kg.

However, with its 6200kg GCM (or how much it can legally carry and tow at the same time) our test vehicle would require a substantial payload reduction of more than half a tonne (525kg) to tow its maximum trailer weight (but it’s not alone there).

And that would leave 470kg of payload capacity, most of which could be used up by the weight of a hefty five-member working crew before you could think about loading any of their tools and other equipment.

Fact is, few (if any) owners would need to tow 3500kg, but it’s important to be aware of these numbers if you do plan to tow that heavy and want to stay on the right side of the law.

The square load tub is 1520mm long and wide and 540mm deep, but with 1146mm between the rear wheel-housings it won’t fit a standard Aussie pallet. However, it will accommodate Euro pallets, if hauling such payloads is important.

The tub’s internal surfaces are protected by a spray-in liner and there are load-anchorage points front and back, with the rears close to floor level (ideal for all loads) and the fronts near the tops of the sidewalls (not ideal for low loads). The tailgate is equipped with hydraulic dampers to assist opening/closing and the handy fold-out step allows easy entry to the load tub.

Cabin storage includes a bottle holder and bin in each front door, a small lower dash compartment on the driver’s right and a slender bin above the glove box on the passenger side.

The centre console has a wireless phone-charging pad, 12V socket and two USB ports up front, plus cup/small-bottle holders and a lidded box at the back with an internal air conditioning cooling vent and sliding upper storage tray.

The rear seat has adequate legroom even for tall people, given I’m 186cm and have about 60mm of knee clearance when seated behind the driver’s seat in my position.

2025 GWM Cannon Ultra

Headroom is adequate though not as generous and the deep contour in the roof lining to allow for the sunroof can make tall rear passengers feel a bit closed-in.

Shoulder room can also be squeezy for three large Aussies, so like all dual cab utes short of a full-size US pick-up it’s okay for short trips but ideal for two on longer drives.

There’s a bin and bottle-holder in each rear door and pockets on both front seat backrests. The 60/40-split seat bases can also fold up and by stored vertically for more internal load space, or to access wheel-changing equipment.

The Cannon's engine capacity has increased 20 per cent by adopting the Alpha's 2.4-litre four-cylinder turbo-diesel. It produces 135kW of power at 3600rpm and 480Nm of torque between 1500-2500rpm, which represents a 12.5 per cent power increase and 20 per cent more torque.

This is paired with GWM’s new homegrown nine-speed torque converter automatic (previously eight-speed) which has overdrive on the top three ratios and there are steering wheel paddle-shifters for sequential manual-shifting.

2025 GWM Cannon Ultra

The 4x4 system is a ‘torque on demand’ design that transmits power to the rear axle under normal driving conditions to optimise fuel economy, but automatically sends power to the front axle if a loss of rear axle traction is detected.

It also offers a choice of selectable drive modes comprising 'Normal' (default), 'Sport' and 'Eco', plus 4H (4x4 High Range) and 4L (4x4 Low Range). The latter is only for the rough stuff, where the selectable electronic rear diff-lock could also come in handy.

GWM claims official combined consumption of 8.4L/100km and the dash display was showing 9.6 at the completion of our 321km test, which comprised the usual mix of suburban, city and highway driving, of which about one third of that distance was hauling its maximum payload. The engine auto start/stop function was switched off for the duration.

2025 GWM Cannon Ultra

Our own figure of 9.7L/100km, crunched from actual fuel bowser and tripmeter readings, was line-ball with the Cannon’s onboard calculation, which proved its accuracy. It also validated our test vehicle’s real-world sub-10L/100km consumption, which is excellent for a two-tonne-plus ute and gets a big thumbs-up from us.

Therefore, based on our test figure, you could expect a real-world driving range of around 800km from its 78-litre diesel tank.

The Cannon has a five-star ANCAP rating awarded in 2021 (expires 2027) and comes with seven airbags (including full-length side-curtain and centre-front), AEB including junction assist, front collision warning (pedestrian and cyclist), rear collision warning, rear cross-traffic alert with brake, blind-spot monitoring, lane-keeping, traffic sign recognition, trailer sway control, adaptive cruise control and lots more.

Junior tradies get ISOFIX child-restraint anchorages and top-tethers on the two outer rear seating positions.
